Pharma CP

Pharma Climate Chambers

For long-term shelf life and ICH stability testing with highest precision
of food, human and animal drugs, vaccines etc.

* Standard version series CP

Capacity in liters: 600/1200

Temperature range:

• +10 °C / +50 °C
• - 20 °C / +50 °C

Humidity range:

• 10 % - 90 %

Dew point range:

• +7 °C / +45 °C

Design:

• Pt100 temperature sensor
• Capacitive humidity sensor
• Casing stainless steel 1.4301 inside and outside
• LED test space lighting
• Lockable door
• 3/6 stainless steel shelves (max. 25pcs./50pcs.)
• Lead-through ø 50 mm
• microprocessor control and monitoring system
• capacitive Multi-Touch-Display
• adjustable software humidity and temperature limits
• Automatic defrost function (for -20 °C version)
• potential free contact for fault signal
• interface RS 232, USB connection

Your benefits:

• low energy consumption
• low noise level
• easy, user friendly operation
• use of environmental friendly materials and coolants
• Own CTS-controller optimized for CTS-systems
• internal and external stainless steel material for easy cleaning

 Options:

• Movable design
• additional lead-trough's
• additional shelves
• additional Pt 100 for temperature measurement on test samples,
    switchable to control function
• independent, adjustable temperature limiter for test samples
• CID-software for programming and documentation
• Ethernet connection (in combination with CID software)

All data are average values ​​obtained at a temperature of +25 °C, without test material, without thermal load and without options. We reserve the right to make changes due to technical development.

Other dimensions and options on request.

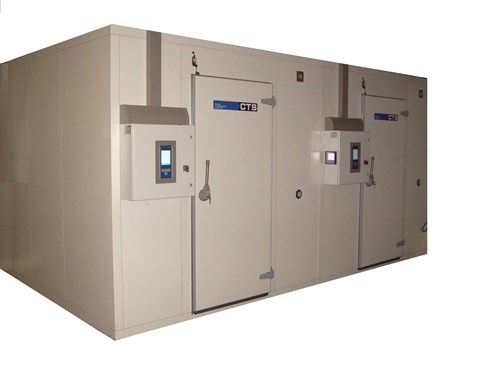

Walk-in stability test Chambers
