Temperature T

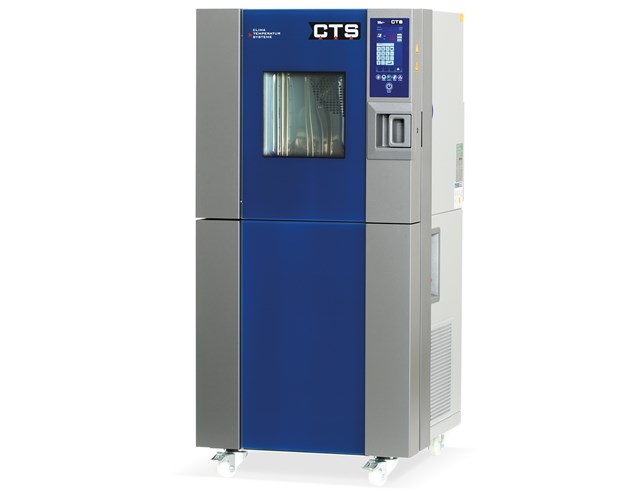

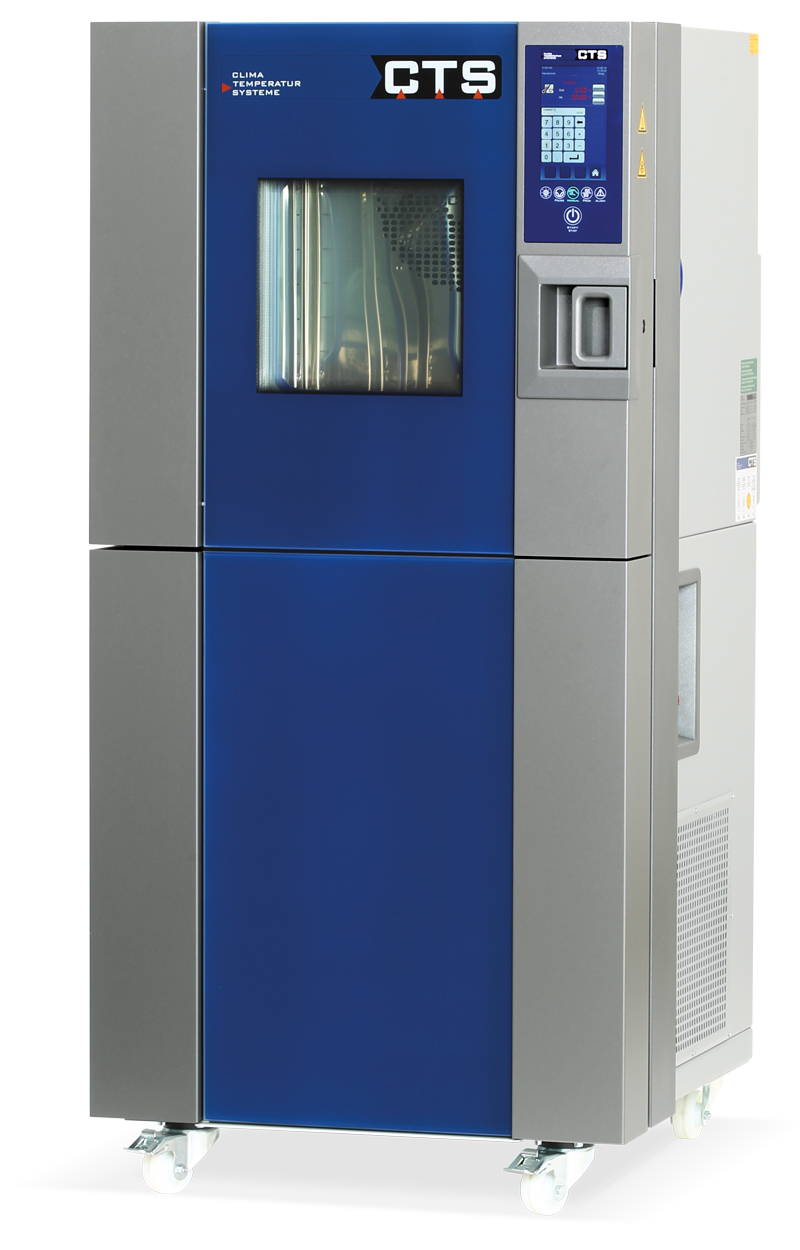

Temperature Test Chambers Series T



The latest generation with innovative technique and future-oriented design.
The CTS temperature test cabinets stand out for their high temperature change rates, easy programming via our modern Multi Touch Panel and low noise level. Due to our modular device concept, we are sure to find the right device and the appropriate solution for your requirements.



Basic Equipment:

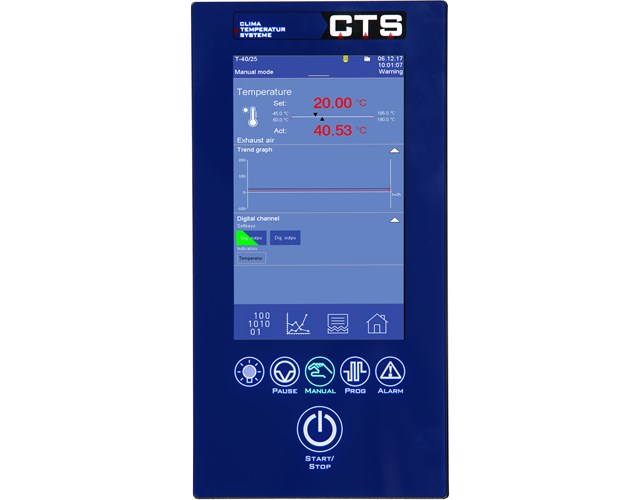

  • capacitive Multi-Touch-Display in the front
  • defined keys for elementary functions of the installation such as
      start/stop, fixed-value/automatic operation, interruption, light, etc.
  • USB-Connection to save measuring data on USB Stick
  • Ethernet-Interface
  • 2 Digital Out, to switch test specimen ON/OFF
  • adjustable software-temperature-limiter min./max.
  • shelf, stainless steel
  • entry port Ø 50 mm on the right side



Your benefits:

  • low consumption data
  • minimum noise level
  • user-friendly operation and programming
  • uniform operation due to identical Multi-Touch-Display for
      all chamber sizes
  • temperature measuring with Pt 100 in air inlet and air outlet
  • service-friendly construction
  • international standards are fulfilled (CE-Conformity)

Test space capacity in litres:

  • 100 / 200 / 350 / 600 / 1000 / 1500 / 2000

Temperature range:

  • -40 °C / +180 °C
  • -70 °C / +180 °C



Design:

Control        : Multi-Touch-Display with integrated program controller

Test space  : stainless steel grade 1.4301

Refrigerants: environmental friendly refrigerants



Main accessories:

  • entry ports Ø 50 mm, 80 mm and 125 mm
  • shelves
  • panoramic window, multiple glazed, sized 570 x 710 mm; ≥ 200 ltr.,
      incl.
    LED-Light
  • hand-holes in the door
  • Pt 100 for temperature measuring on test specimen reversible
      to controller function
  • air dryer system
  • mobile design
  • temperature protection for test specimen
  • water cooled refrigeration unit
  • CID software for programming and documentation
  • variable air speed in the test space
  • notch Lead-through
  • Other interfaces: RS232, RS485 and USB
